Shank Holding Pack | OM Manufacturers

Changeable-Pack

Changeable-Pack

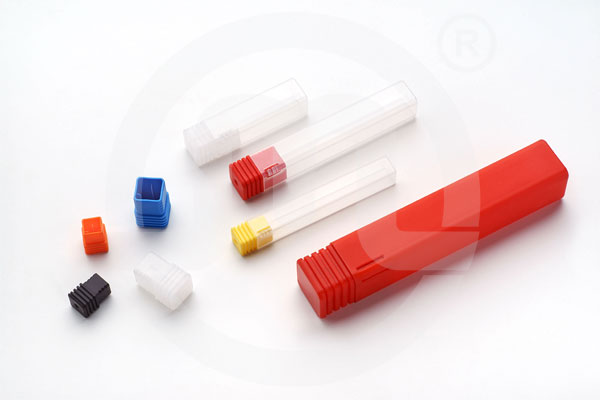

Product Description

Quality single packaging,with short shank holding base-plug groove in bottom part makes opening easy center adapter to support and secure tool

Product Features

Attractive design durable and re-usable high Protection for tools cutting edges,sturdy oil and moisture resistant

Application

Ideal for Solid Carbide, Milling Cutters, Shank Tools, Drills & Micro Drills

Download PDF

Shank Holding Pack (SHP-08) – Cap
Item Code		(Ø) Shank Holding		Box Qty	Available Color
	In (mm)		In (inch)
SHP08-CAP2.35	2.35	0.093		2000		Sample Request
SHP08-CAP03	3	0.118		2000		Sample Request
SHP08-CAP3.175	3.175	0.125	1/8″	2000		Sample Request
SHP08-CAP04	4	0.157		2000		Sample Request
SHP08-CAP4.762	4.762	0.187	3/16″	2000		Sample Request
SHP08-CAP05	5	0.197		2000		Sample Request
SHP08-CAP06	6	0.236		2000		Sample Request
SHP08-CAP6.35	6.35	0.250	1/4″	2000		Sample Request
SHP08-CAP08	8	0.315		2000		Sample Request

Shank Holding Pack (SHP-08) – Tube
Item Code	Inside Width	Usable Length (L)		Box Qty	Available Color
	In (mm)	In (mm)	In (inch)
SHP08-TUBE42	10	50	1.969	2000		Sample Request
SHP08-TUBE52	10	60	2.362	2000		Sample Request
SHP08-TUBE70	10	78	3.071	2000		Sample Request
SHP08-TUBE85	10	93	3.661	2000		Sample Request
SHP08-TUBE97	10	105	4.134	2000		Sample Request

Shank Holding Pack (SHP-13) – Cap
Item Code		(Ø) Shank Holding		Box Qty	Available Color
	In (mm)		In (inch)
SHP13-CAP03	3	0.118		1000		Sample Request
SHP13-CAP04	4	0.157		1000		Sample Request
SHP13-CAP05	5	0.197		1000		Sample Request
SHP13-CAP06	6	0.236		1000		Sample Request
SHP13-CAP6.35	6.35	0.250	1/4″	1000		Sample Request
SHP13-CAP07	7	0.276		1000		Sample Request
SHP13-CAP08	8	0.315		1000		Sample Request
SHP13-CAP09	9	0.354		1000		Sample Request
SHP13-CAP9.525	9.525	0.375	3/8″	1000		Sample Request
SHP13-CAP10	10	0.394		1000		Sample Request
SHP13-CAP11	11	0.433		1000		Sample Request
SHP13-CAP11.11	11.11	0.437	7/16″	1000		Sample Request
SHP13-CAP12	12	0.472		1000		Sample Request
SHP13-CAP12.7	12.7	0.500	1/2″	1000		Sample Request
SHP13-CAP13	13	0.512		1000		Sample Request

Shank Holding Pack (SHP-13) – Tube
Item Code	Inside Width	Usable Length (L)		Box Qty	Available Color
	In (mm)	In (mm)	In (inch)
SHP13-TUBE56	15	66	2.598	1000		Sample Request
SHP13-TUBE74	15	84	3.307	1000		Sample Request
SHP13-TUBE97	15	108	4.252	1000		Sample Request
SHP13-TUBE110	15	120	4.724	1000		Sample Request

Shank Holding Pack (SHP-18) – Cap
Item Code		(Ø) Shank Holding		Box Qty	Available Color
	In (mm)		In (inch)
SHP18-CAP14	14	0.551		400		Sample Request
SHP18-CAP14.287	14.287	0.562	9/16″	400		Sample Request
SHP18-CAP15.875	15.875	0.625	5/8″	400		Sample Request
SHP18-CAP16	16	0.630		400		Sample Request

Shank Holding Pack (SHP-18) – Tube
Item Code	Inside Width	Usable Length (L)		Box Qty	Available Color
	In (mm)	In (mm)	In (inch)
SHP18-TUBE83	21	98	3.858	400		Sample Request
SHP18-TUBE130	21	144	5.670	400		Sample Request
SHP18-TUBE145	21	158	6.220	400		Sample Request

Shank Holding Pack (SHP-20) – Cap
Item Code		(Ø) Shank Holding		Box Qty	Available Color
	In (mm)		In (inch)
SHP20-CAP18	18	0.709		300		Sample Request
SHP20-CAP19.05	19.05	0.750	3/4″	300		Sample Request
SHP20-CAP20	20	0.787		300		Sample Request

Shank Holding Pack (SHP-20) – Tube
Item Code	Inside Width	Usable Length (L)		Box Qty	Available Color
	In (mm)	In (mm)	In (inch)
SHP20-TUBE62	24	80	3.150	300		Sample Request
SHP20-TUBE89	24	107	4.213	300		Sample Request
SHP20-TUBE130	24	148	5.827	300		Sample Request

Packing each size in separate cartoon Cap & Tube packed individually

Polypropylene(PP) Polyethylene (PE)
