Multi Snap Pack | OM Manufacturers

Changeable-Pack

Changeable-Pack

Product Description

Multi Packing with set of 5 & 10 under multi and double lock system.

Product Features

Push lock on both sides Easy to take and keep Easy lock allow for easy tool removal Excellent protection prevent damage during transit

Application

Ideal for Micro Drills, Taps, Center Drill & many more

Download PDF

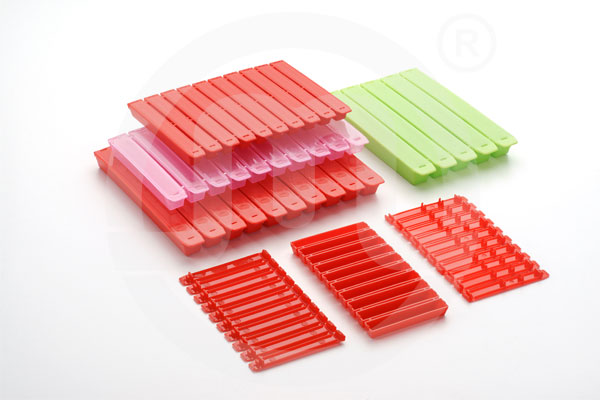

Multi Snap Pack
Item Code	(Ø) Inside Diameter		Usable Length (L) (Min-Max)		Set of Pcs	Box Qty	Available Color
	In (mm)	In (inch)	In (mm)	In (inch)
MSP06050/05	6	0.236	50	1.969	5	TBA		Sample Request
MSP06050/10	6	0.236	50	1.969	10	380		Sample Request
MSP06066/05	6	0.236	50	1.969	5	1200		Sample Request
MSP06066/10	6	0.236	66	2.598	10	600		Sample Request
MSP06100/05	6	0.236	100	3.937	5	TBA		Sample Request
MSP06100/10	6	0.236	100	3.937	10	376		Sample Request
MSP08080/05	8	0.315	80	3.150	5	700		Sample Request
MSP08080/10	8	0.315	80	3.150	10	280		Sample Request
MSP10080/05	10	0.394	80	3.150	5	440		Sample Request
MSP10080/10	10	0.394	80	3.150	10	160		Sample Request
MSP10125/05	10	0.394	125	4.921	5	TBA		Sample Request
MSP10125/10	10	0.394	125	4.921	10	144		Sample Request
MSP12080/05	12	0.472	80	3.150	5	324		Sample Request
MSP12110/05	12	0.472	110	4.331	5	280		Sample Request
MSP16110/05	16	0.630	110	4.331	5	TBA		Sample Request

Multi Snap Pack with Shank Holding Grip
Item Code	(Ø) Shank Holding Diameter	Usable Length (L) (Min-Max)		Set of Pcs	Box Qty	Available Color
	In (mm)	In (mm)	In (Inch)
MSP06050-2.35	2.35	50	1.969	10	272		Sample Request
MSP06050-3	3	50	1.969	10	272		Sample Request
MSP06066-2.35	2.35	66	2.598	10	TBA		Sample Request
MSP06066-3	3	66	2.598	10	TBA		Sample Request

Top & Bottom packed in one carton

Polypropylene(PP)
