Length Variable Pack | OM Manufacturers

Changeable-Pack

Changeable-Pack

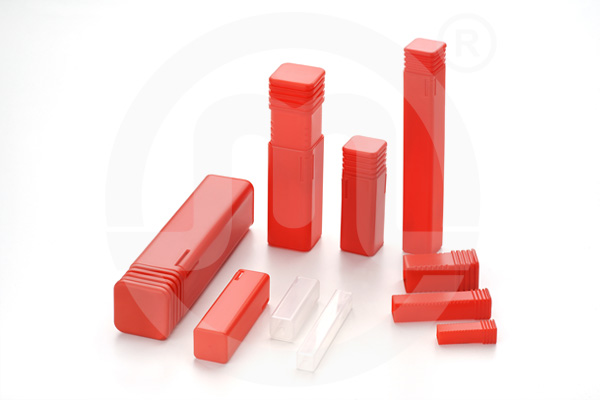

Product Description

Length adjustable with heavy grip for high quality tools

Product Features

Easy to store and handle User friendly Attractive packaging

Application

Ideal for End Mill, Milling Cutter Heavy engineering tools & many more

Download PDF

Length Variable Pack – 08 Series
Item code (Inner)	Item code (Outer)	Usable length (L)	Usable Length (L)	Box Qty	Available Color
		In (mm) (Min-Max)	In (inch) (Min-Max)
LVP08-I38	LVP08-O42	50-60	1.969-2.362	2000		Sample Request
	LVP08-O52	60-78	2.362-3.070	2000		Sample Request
	LVP08-O70	78-93	3.070-3.661	2000		Sample Request
	LVP08-O85	93-105	3.661-4.449	2000		Sample Request
	LVP08-O97	105-125	4.134-4.921	2000		Sample Request
LVP08-I58	LVP08-O42	60-70	2.362-2.756	2000		Sample Request
	LVP08-O52	60-90	2.362-3.543	2000		Sample Request
	LVP08-O70	78-100	3.0713.937	2000		Sample Request
	LVP08-O85	93-133	3.661-5.236	2000		Sample Request
	LVP08-O97	105-145	4.134-5.709	2000		Sample Request

Length Variable Pack – 13 Series
Item code (Inner)	Item code (Outer)	Usable length (L)	Usable Length (L)	Box Qty	Available Color
		In (mm) (Min-Max)	In (inch) (Min-Max)
LVP13-I66	LVP13-O56	66-110	2.598-4.330	1000		Sample Request
	LVP13-O74	84-122	3.307-4.803	1000		Sample Request
	LVP13-O97	108-150	4.251-5.906	1000		Sample Request
	LVP13-O110	120-160	4.724-6.299	1000		Sample Request
LVP13-I79	LVP13-O56	66 -123	2.598-4.842	1000		Sample Request
	LVP13-O74	84 -140	3.307-5.511	1000		Sample Request
	LVP13-O97	108-160	4.252-6.299	1000		Sample Request
	LVP13-O110	120-173	4.724-6.811	1000		Sample Request

Length Variable Pack – 18 Series
Item code (Inner)	Item code (Outer)	Usable length (L)	Usable Length (L)	Box Qty	Available Color
		In (mm) (Min-Max)	In (inch) (Min-Max)
LVP18-I47	LVP18- O83	98-113	3.858-4.449	200		Sample Request
	LVP18-O130	145-160	5.709-6.299	200		Sample Request
	LVP18-O145	160-170	6.299-6.692	200		Sample Request
LVP18-I61	LVP18-O83	98-125	3.858-4.921	200		Sample Request
	LVP18-O130	145-170	5.709-6.692	200		Sample Request
	LVP18-O145	145-170	6.299-7.087	200		Sample Request
LVP18-I90	LVP18-O83	98-135	3.858-5.315	200		Sample Request
	LVP18-O130	145-180	5.709-7.087	200		Sample Request
	LVP18-O145	160-200	6.299-7.874	200		Sample Request

Length Variable Pack- 20 Series
Item code (Inner)	Item code (Outer)	Usable length (L)	Usable Length (L)	Box Qty	Available Color
		In (mm) (Min-Max)	In (inch) (Min-Max)
LVP20-I70	LVP20-O62	80-100	3.150-3.937	450		Sample Request
	LVP20-O89	110-125	4.331-4.921	450		Sample Request
	LVP20-O130	150-170	5.906-6.692	450		Sample Request
LVP20-I91	LVP20-O62	91-110	3.583-4.331	150		Sample Request
	LVP20-O89	110-135	4.331-5.315	150		Sample Request
	LVP20-130	150-180	5.906-7.087	150		Sample Request

Length Variable Pack – 26 Series
Item code (Inner)	Item code (Outer)	Usable length (L)	Usable Length (L)	Box Qty	Available Color
		In (mm) (Min-Max)	In (inch) (Min-Max)
LVP26-I90	LVP26-O82	100-135	3.937-5.315	256		Sample Request
	LVP26-O124	140-175	5.512-6.889	256		Sample Request
LVP26-I136	LVP26-O82	136-180	5.354-7.086	256		Sample Request
	LVP26-O124	140-225	5.511-8.858	256		Sample Request

Length Variable Pack – 32 Series
Item code (Inner)	Item code (Outer)	Usable length (L)	Usable Length (L)	Box Qty	Available Color
		In (mm) (Min-Max)	In (inch) (Min-Max)
LVP32-I155	LVP32-O145	145-255	5.709-10.039	320		Sample Request

Packing each size in a separate carton Cap & Tube packed individually

Polypropylene(PP)
